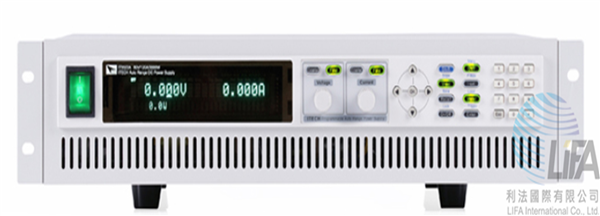

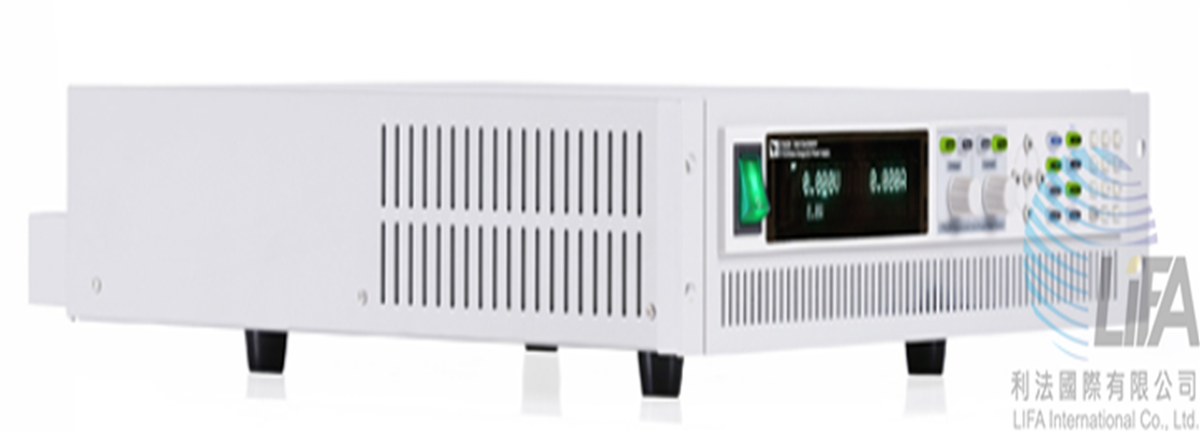

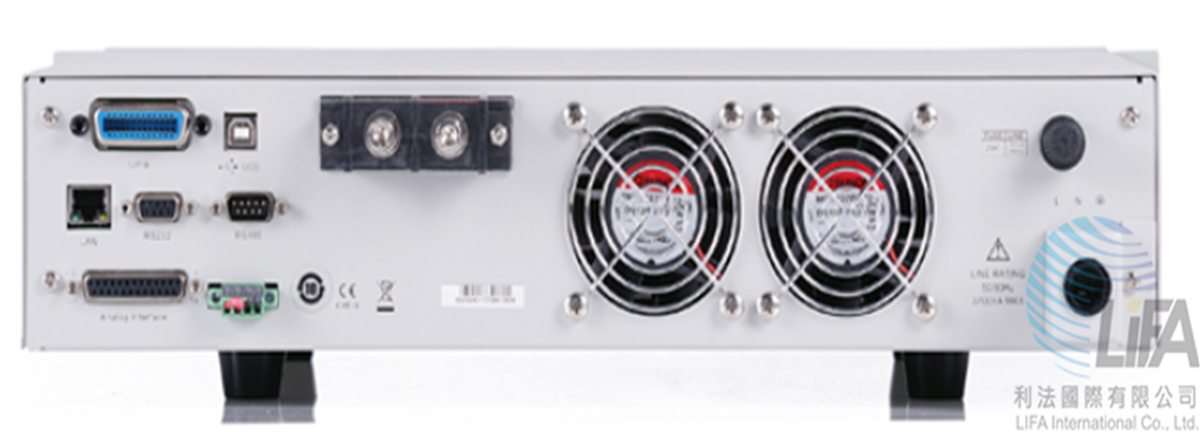

IT6500 寬範圍大功率可程式直流電源

1.主從模式支援並聯，主動均流，擴展高達30kW輸出能力
2.支援各種模式（源CV/CC/CP，載CC/CP），邊沿獨立設定，上升和下降時間可調
3.雙向限電流輸出能力，跨象限快速切換——無縫切換、適用於電池快速充放電
4.內置DIN40839、ISO-16750-2、SAEJ1113-11、LV124和ISO21848標準汽車功率網用電壓曲線*2
5.支援太陽能電池板I-V曲線類比功能 *4
6.支援LIST序列檔
7.支援輸出阻抗設定功能 *1
8.支持源OVP/OCP/OPP/OTP，載 OCP/OPP/OTP，Vsense反接保護，掉電及輸入欠壓保護



*詳細規格/型錄，請見網頁下方下載

與我們聯絡

  • 產品說明

雙向線無縫切換
雙象限電源，不僅僅是簡單的電源和電子負載相加。傳統的雙極性電源在實現正負電流切換時，中間會存在短暫的跳變和不連貫現象。IT6500C系列（1800W-30KW）作為一款高速的雙極性電源具有Loop-Mode功能，能夠實現高速源電流和載電流模式轉換，從而在輸出電流和吸收電流之間進行快速連續的無縫切換，有效避免電壓或電流過沖，廣泛適用於電池、電池封裝以及電池保護板等儲能設備測試。

搭配功率耗散器，擴展負載能力

IT6500C系列同時兼具負載的功能，拓展了電流工作範圍，使其可以吸收一定電流和功率，直接應用於快速下降和電池充放電。IT-E500系列功率耗散器可為IT6500C提供更大的卸載能力，每個可提供高達3KW的電流吸收能力，並支持多個功率耗散器並聯，最大可至90KW，將吸收電流能力擴展到100%，功率吸收擴展300%，以滿足更大功率的放電測試需求。

CC&CV優先權功能

IT6500C系列突破創新，提出CV/CC優先權概念，可幫助用戶解決長期測試應用中的各種嚴苛問題，使需求電源高速或者無過衝等應用，變得更加靈活。使用者可以選擇CV/CC迴路的回應速度以及迴路工作模式，來決定輸出是電壓高速模式還是電流無過衝模式，適用於大功率積體電路的測試、充放電測試和汽車電子的電源瞬變模擬。

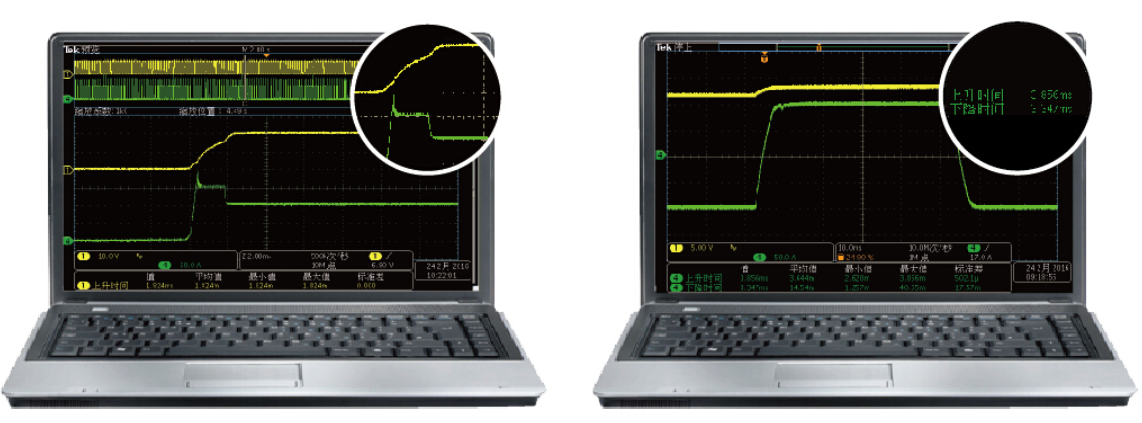

快速邊沿、支援各種模式下邊沿時間獨立設定
IT6500C/D系列每一款機型，不管是單機還是並機均具有相同的邊沿建立時間。以IT6522C為例：
1) 在電壓30V以內，0-90%帶載情況下，上升、下降時間＜3ms
2) 在滿電壓時，空載下降時間（不搭配功率耗散器）＜30ms，（搭配功率耗散器）＜5ms
3) 動態回應時間＜3ms；

       型號                      電壓                 電流                  功率                          分辨率                              經度
IT6502D
80V
60A
800W
1mV/1mA
≤0.02%+30mV/ ≤0.1%+0.1%FS



IT6512
80V
60A
1200W
1mV/1mA
≤0.02%+30mV/ ≤0.1%+0.1%FS



IT6512A
80V
60A
1200W
1mV/1mA
≤0.02%+30mV/ ≤0.1%+0.1%FS



IT6513
150V
30A
1200W
3mV/1mA
≤0.05%+30mV ≤0.2%+0.1%FS



IT6513A
150V
30A
1200W
3mV/1mA
≤0.05%+30mV ≤0.2%+0.1%FS



IT6512C
80V
120A
1800W
10mV/10mA
≤0.05%+30mV ≤0.2%+120mA



IT6512D
80V
120A
1800W
10mV/10mA
≤0.05%+30mV ≤0.2%+120mA



IT6513C
200V
60A
1800W
10mV/10mA
≤0.05%+100mV ≤0.2%+60mA


IT6513D
200V
60A
1800W
10mV/10mA
≤0.05%+100mV ≤0.2%+60mA



IT6514C
360V
30A
1800W
10mV/10mA
≤0.05%+135mV ≤0.2%+30mA



IT6514D
360V
30A
1800W
10mV/10mA
≤0.05%+135mV ≤0.2%+30mA


IT6515C
500V
20A
1800W
100mV/10mA
≤0.05%+200mV ≤0.2%+20mA



IT6515D
500V
20A
1800W
100mV/10mA
≤0.05%+200mV ≤0.2%+20mA



IT6516C
750V
15A
1800W
100mV/10mA
≤0.05%+300mV ≤0.2%+15mA


IT6516D
750V
15A
1800W
100mV/10mA
≤0.05%+300mV ≤0.2%+15mA



IT6517C
1000V
10A
1800W
100mV/1mA
≤0.05%+375mV ≤0.2%+10mA


IT6517D
1000V
10A
1800W
100mV/1mA
≤0.05%+375mV ≤0.2%+10mA



IT6522C
80V
120A
3kW
10mV/10mA
≤0.05%+30mV ≤0.2%+120mA



IT6522D
80V
120A
3kW
10mV/10mA
≤0.05%+30mV ≤0.2%+120mA



IT6523C
200V
60A
3kW
10mV/10mA
≤0.05%+100mV ≤0.2%+60mA



IT6523D
200V
60A
3kW
10mV/10mA
≤0.05%+100mV ≤0.2%+60mA


IT6524C
360V
30A
3kW
10mV/10mA
≤0.05%+135mV ≤0.2%+30mA


IT6524D
360V
30A
3kW
10mV/10mA
≤0.05%+135mV ≤0.2%+30mA



IT6525C
500V
20A
3kW
100mV/10mA
≤0.05%+200mV ≤0.2%+20mA



IT6525D
500V
20A
3kW
100mV/10mA
≤0.05%+200mV ≤0.2%+20mA



IT6526C
750V
15A
3kW
100mV/10mA
≤0.05%+300mV ≤0.2%+15mA



IT6526D
750V
15A
3kW
100mV/10mA
≤0.05%+300mV ≤0.2%+15mA



IT6527C
1000V
10A
3kW
100mV/1mA
≤0.05%+375mV ≤0.2%+10mA



IT6527D
1000V
10A
3kW
100mV/1mA
≤0.05%+375mV ≤0.2%+10mA



IT6532C
80V
240A
6kW
10mV/10mA
≤0.05%+30mV ≤0.2%+240mA



IT6532D
80V
240A
6kW
10mV/10mA
≤0.05%+30mV ≤0.2%+240mA



IT6533C
200V
120A
6kW
10mV/10mA
≤0.05%+100mV ≤0.2%+120mA



IT6533D
200V
120A
6kW
10mV/10mA
≤0.05%+100mV ≤0.2%+120mA



IT6534C
360V
60A
6kW
10mV/10mA
≤0.05%+135mV ≤0.2%+60mA



IT6534D
360V
60A
6kW
10mV/10mA
≤0.05%+135mV ≤0.2%+60mA



IT6535C
500V
40A
6kW
100mV/10mA
≤0.05%+200mV ≤0.2%+40mA



IT6535D
500V
40A
6kW
100mV/10mA
≤0.05%+200mV ≤0.2%+40mA



IT6536C
750V
30A
6kW
100mV/10mA
≤0.05%+300mV ≤0.2%+30mA


IT6536D
750V
30A
6kW
100mV/10mA
≤0.05%+300mV ≤0.2%+30mA



IT6537C
1000V
20A
6kW
100mV/1mA
≤0.05%+375mV ≤0.2%+20mA



IT6537D
1000V
20A
6kW
100mV/1mA
≤0.05%+375mV ≤0.2%+20mA


IT6542C
80V
360A
9kW
10mV/10mA
≤0.05%+30mV ≤0.2%+360mA



IT6542D
80V
360A
9kW
10mV/10mA
≤0.05%+30mV ≤0.2%+360mA



IT6543C
200V
180A
9kW
10mV/10mA
≤0.05%+100mV ≤0.2%+180mA



IT6543D
200V
180A
9kW
10mV/10mA
≤0.05%+100mV ≤0.2%+180mA


IT6544C
360V
90A
9kW
10mV/10mA
≤0.05%+135mV ≤0.2%+90mA



IT6544D
360V
90A
9kW
10mV/10mA
≤0.05%+135mV ≤0.2%+90mA



IT6545C
500V
60A
9kW
100mV/10mA
≤0.05%+200mV ≤0.2%+60mA



IT6545D
500V
60A
9kW
100mV/10mA
≤0.05%+200mV ≤0.2%+60mA



IT6546C
750V
45A
9kW
100mV/10mA
≤0.05%+300mV ≤0.2%+45mA



IT6546D
750V
45A
9kW
100mV/10mA
≤0.05%+300mV ≤0.2%+45mA



IT6547C
1000V
30A
9kW
100mV/1mA
≤0.05%+375mV ≤0.2%+30mA



IT6547D
1000V
30A
9kW
100mV/1mA
≤0.05%+375mV ≤0.2%+30mA



IT6552C
80V
480A
12kW
10mV/10mA
≤0.05%+30mV ≤0.2%+480mA



IT6552D
80V
480A
12kW
10mV/10mA
≤0.05%+30mV ≤0.2%+480mA



IT6553C
200V
240A
12kW
10mV/10mA
≤0.05%+100mV ≤0.2%+240mA


IT6553D
200V
240A
12kW
10mV/10mA
≤0.05%+100mV ≤0.2%+240mA


IT6554C
360V
120A
12kW
10mV/10mA
≤0.05%+135mV ≤0.2%+120mA


IT6554D
360V
120A
12kW
10mV/10mA
≤0.05%+135mV ≤0.2%+120mA


IT6555C
500V
80A
12kW
100mV/10mA
≤0.05%+200mV ≤0.2%+80mA



IT6555D
500V
80A
12kW
100mV/10mA
≤0.05%+200mV ≤0.2%+80mA


IT6556C
750V
60A
12kW
100mV/10mA
≤0.05%+300mV ≤0.2%+60mA



IT6556D
750V
60A
12kW
100mV/10mA
≤0.05%+300mV ≤0.2%+60mA


IT6557C
1000V
40A
12kW
100mV/1mA
≤0.05%+375mV ≤0.2%+40mA


IT6557D
1000V
40A
12kW
100mV/1mA
≤0.05%+375mV ≤0.2%+40mA


IT6562C
80V
600A
15kW
10mV/10mA
≤0.05%+30mV ≤0.2%+600mA


IT6562D
80V
600A
15kW
10mV/10mA
≤0.05%+30mV ≤0.2%+600mA


IT6563C
200V
300A
15kW
10mV/10mA
≤0.05%+100mV ≤0.2%+300mA


IT6563D
200V
300A
15kW
10mV/10mA
≤0.05%+100mV ≤0.2%+300mA


IT6564C
360V
150A
15kW
10mV/10mA
≤0.05%+135mV ≤0.2%+150mA


IT6564D
360V
150A
15kW
10mV/10mA
≤0.05%+135mV ≤0.2%+150mA


IT6565C
500V
100A
15kW
100mV/10mA
≤0.05%+200mV ≤0.2%+100mA


IT6565D
500V
100A
15kW
100mV/10mA
≤0.05%+200mV ≤0.2%+100mA



IT6566C
750V
75A
15kW
100mV/10mA
≤0.05%+300mV ≤0.2%+75mA


IT6566D
750V
75A
15kW
100mV/10mA
≤0.05%+300mV ≤0.2%+75mA



IT6567C
1000V
50A
15kW
100mV/1mA
≤0.05%+375mV ≤0.2%+50mA



IT6567D
1000V
50A
15kW
100mV/1mA
≤0.05%+375mV ≤0.2%+50mA


IT6572C
80V
840A
21kW
10mV/10mA
≤0.05%+30mV ≤0.2%+840mA


IT6572D
80V
840A
21kW
10mV/10mA
≤0.05%+30mV ≤0.2%+840mA


IT6573C
200V
420A
21kW
10mV/10mA
≤0.05%+100mV ≤0.2%+420mA



IT6573D
200V
420A
21kW
10mV/10mA
≤0.05%+100mV ≤0.2%+420mA


IT6574C
360V
210A
21kW
10mV/10mA
≤0.05%+135mV ≤0.2%+210mA


IT6574D
360V
210A
21kW
10mV/10mA
≤0.05%+135mV ≤0.2%+210mA


IT6575C
500V
140A
21kW
100mV/10mA
≤0.05%+200mV ≤0.2%+140mA


IT6575D
500V
140A
21kW
100mV/10mA
≤0.05%+200mV ≤0.2%+140mA


IT6576C
750V
105A
21kW
100mV/10mA
≤0.05%+300mV ≤0.2%+105mA



IT6576D
750V
105A
21kW
100mV/10mA
≤0.05%+300mV ≤0.2%+105mA



IT6577C
1000V
70A
21kW
100mV/1mA
≤0.05%+375mV ≤0.2%+70mA


IT6577D
1000V
70A
21kW
100mV/1mA
≤0.05%+375mV ≤0.2%+70mA


IT6582C
80V
960A
24kW
10mV/10mA
≤0.05%+30mV ≤0.2%+960mA


IT6582D
80V
960A
24kW
10mV/10mA
≤0.05%+30mV ≤0.2%+960mA


IT6583C
200V
480A
24kW
10mV/10mA
≤0.05%+100mV ≤0.2%+480mA


IT6583D
200V
480A
24kW
10mV/10mA
≤0.05%+100mV ≤0.2%+480mA


IT6584C
360V
240A
24kW
10mV/10mA
≤0.05%+135mV ≤0.2%+240mA


IT6584D
360V
240A
24kW
10mV/10mA
≤0.05%+135mV ≤0.2%+240mA



IT6585C
500V
160A
24kW
100mV/10mA
≤0.05%+200mV ≤0.2%+160mA


IT6585D
500V
160A
24kW
100mV/10mA
≤0.05%+200mV ≤0.2%+160mA


IT6586C
750V
120A
24kW
100mV/10mA
≤0.05%+300mV ≤0.2%+120mA



IT6586D
750V
120A
24kW
100mV/10mA
≤0.05%+300mV ≤0.2%+120mA


IT6587C
1000V
80A
24kW
100mV/1mA
≤0.05%+375mV ≤0.2%+80mA


IT6587D
1000V
80A
24kW
100mV/1mA
≤0.05%+375mV ≤0.2%+80mA


IT6592C
80V
1200A
30kW
10mV/10mA
≤0.05%+30mV ≤0.2%+1200mA


IT6592D
80V
1200A
30kW
10mV/10mA
≤0.05%+30mV ≤0.2%+1200mA


IT6593C
200V
600A
30kW
10mV/10mA
≤0.05%+100mV ≤0.2%+600mA


IT6593D
200V
600A
30kW
10mV/10mA
≤0.05%+100mV ≤0.2%+600mA


IT6594C
360V
300A
30kW
10mV/10mA
≤0.05%+135mV ≤0.2%+300mA


IT6594D
360V
300A
30kW
10mV/10mA
≤0.05%+135mV ≤0.2%+300mA


IT6595C
500V
200A
30kW
100mV/10mA
≤0.05%+200mV ≤0.2%+200mA


IT6595D
500V
200A
30kW
100mV/10mA
≤0.05%+200mV ≤0.2%+200mA


IT6596C
750V
150A
30kW
100mV/10mA
≤0.05%+300mV ≤0.2%+150mA


IT6596D
750V
150A
30kW
100mV/10mA
≤0.05%+300mV ≤0.2%+150mA


IT6597C
1000V
100A
30kW
100mV/1mA
≤0.05%+375mV ≤0.2%+100mA


IT6597D
1000V
100A
30kW
100mV/1mA
≤0.05%+375mV ≤0.2%+100mA
